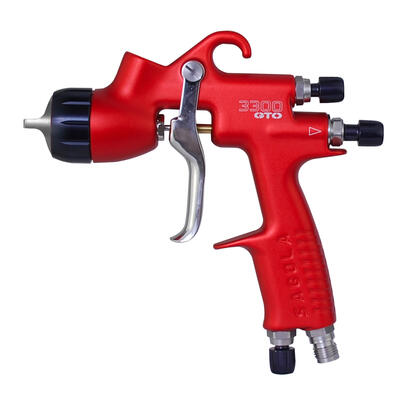

The New 3300 GTO is launched with the highest SAGOLA manufacturing standards, competitive prices whilst maintaining a superb service and offering the best warrantee (3 years). All this with strict compliance with the most demanding standards of manufacture and emissions of solvents, with EPA and HVLP systems.


Its new forged and anodized body and more ergonomic design together with the highest quality and efficiency nozzles, make a more attractive and versatile spray gun with an excellent value for money offering a wide range of solutions for different painting applications.


SAGOLA
renews and improves the mid-high range of spray guns. The new 3300 GTO, is the result of the fusion of two of the most renown products: 3300 PRO (industry) and 4100 GTO (bodyshop).


VERSATILITY: WIDE RANGE OF SOLUTIONS

At the forefront of ergonomics, balance and comfort when painting.

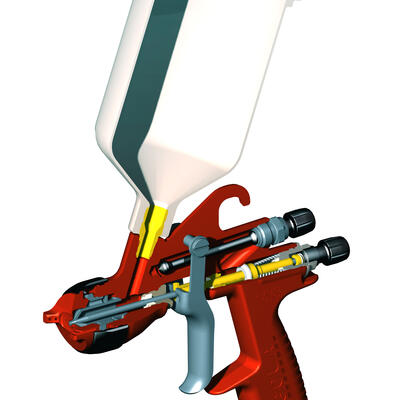

Light but robust body, maintaining the construction in aluminium and stainless steel in all its pieces, giving it maximum robustness and minimum maintenance.

Easy and smooth use.

ANODIZED HIGH RESISTANCE with ANTI-CORROSIVE PROTECTION.

Easier for cleaning and maintenance process.

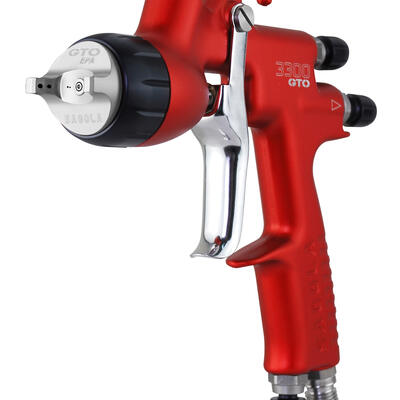

Air Cap GTO EPA
GTO EPA 1.40 Primers
1.60 Refinish Primers. Drying express
1.80 HS Primers
Air Cap GTO 64S
GTO 64S 2.20 High-thickness Primers
Air Cap GTO 62S
GTO 62S 2.80 Spray gun Fillers
Air Cap GTO HVLP
GTO HVLP 1.40 Primers
1.60 Refinish Primers. Drying express
1.80 HS Primers
Air Cap GTO EVO
GTO EVO 1.30 Wet/Wet Primers, Finishes
1.40 Wet/Wet Primers, Industrial finishes
1.60 High application speed, large surfaces
Weight without cup 474.8 g.
Dimensions without cup 18.2 x 1.9 x 17.8 cm.
Air inlet couplings BSP 1/4” M
Cup capacity 650 ml
Cup Removable anti-drip system
Maximum design pressure 8 bar
Air inlet pressure max 2 bar
Maximum recommended application distance GTO EPA 18 - 20 cm.
Maximum recommended application distance GTO HVLP 12 - 15 cm.
Average paint output flow (nozzle 1.4 mm. 20”) GTO EPA 179 g/min
Average paint output flow (nozzle 1.4 mm. 20”) GTO HVLP 145 g/min
Average paint output flow (nozzle 1.4 mm. 20”) GTO EVO 179 g/min
Air consumption (2 bar inlet) GTO EPA 250 L/min
Air consumption (2 bar inlet) GTO HVLP 360 L/min
Air consumption (2 bar inlet) GTO EVO 255 L/min
Fan size GTO EPA [1.8] 250 mm.
Fan size GTO HVLP [1.8] 250 mm.
Fan size GTO EVO [1.4] 280 mm.
Average sound pressure level 80 dB
Code Version
10141555 Gravity Spray Gun 3300 GTO 1.40[GTO HVLP
10141556 Gravity Spray Gun 3300 GTO 1.60[GTO HVLP
10141557 Gravity Spray Gun 3300 GTO 1.80[GTO HVLP
10141559 Gravity Spray Gun 3300 GTO 1.30 (EVO)
10141560 Gravity Spray Gun 3300 GTO 1.40 (EVO)
10141561 Gravity Spray Gun 3300 GTO 1.60 (EVO)
10141562 Gravity Spray Gun 3300 GTO 1.40(3300EPA)
10141563 Gravity Spray Gun 3300 GTO 1.60(3300EPA)
10141564 Gravity Spray Gun 3300 GTO 1.80(3300EPA)
10141572 Gravity Spray Gun 3300 GTO 2.20 (64S)
10141574 Gravity Spray Gun 3300 GTO 2.80 (62S)
10141575 Spray Gun 3300 GTO 1.40 (HVLP) Suitcase
10141576 Spray Gun 3300 GTO 1.60 (HVLP) Suitcase
10141577 Spray Gun 3300 GTO 1.80 (HVLP) Suitcase
10141578 Spray Gun 3300 GTO 1.40 (EPA) Suitcase
10141579 Spray Gun 3300 GTO 1.60 (EPA) Suitcase
10141580 Spray Gun 3300 GTO 1.8 (EPA) Suitcase
10141585 Spray Gun 3300 GTO 2.20 (64S) Suitcase
10141586 Spray Gun 3300 GTO 2.80 (62S) Suitcase
